Headlamp Assembly Removal and Installation (For HATCHBACK Model): Installation

Install the turn signal lamp.

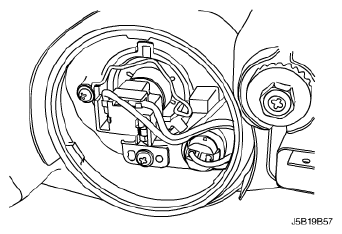

Fig 1: Identifying Turn Signal Lamp
Courtesy of SUZUKI OF AMERICA CORP.
Install the park lamp.

Fig 2: Identifying Park Lamp
Courtesy of SUZUKI OF AMERICA CORP.
Install the headlamp bulb.
Install the headlamp bulb clip.
Connect the headlamp bulb connector.

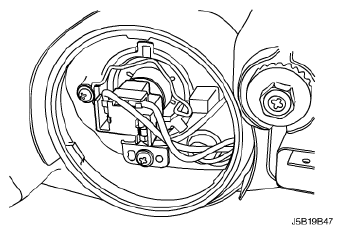

Fig 3: Identifying Headlamp Bulb Connector
Courtesy of SUZUKI OF AMERICA CORP.
Install the cap concealing the headlamp bulb.

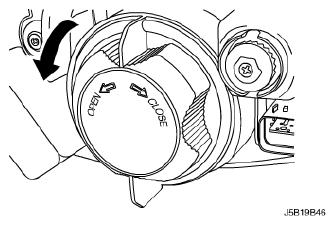

Fig 4: Identifying Headlamp Bulb Cap
Courtesy of SUZUKI OF AMERICA CORP.
Install the headlamp assembly.
Connect the headlamp electrical connector.
Connect the turn signal lamp electrical connector.

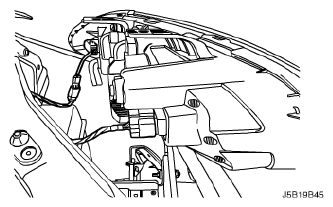

Fig 5: Identifying Headlamp & Turn Signal Lamp Electrical Connectors
Courtesy of SUZUKI OF AMERICA CORP.
Install the headlamp mounting bolts.
Tighten:

Tighten the headlamp mounting bolts to 4 N.m (35 lb-in).

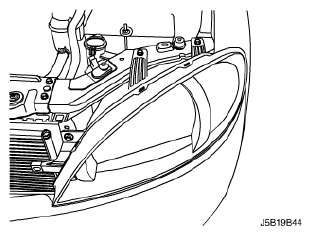

Fig 6: Identifying Headlamp Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the radiator grille.
Install the radiator grille screws.
Connect the negative battery cable.

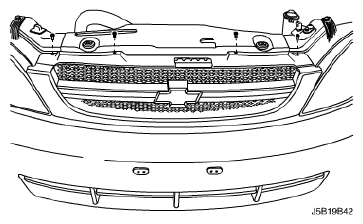

Fig 7: Identifying Radiator Grille & Screws
