For HATCHBACK Model

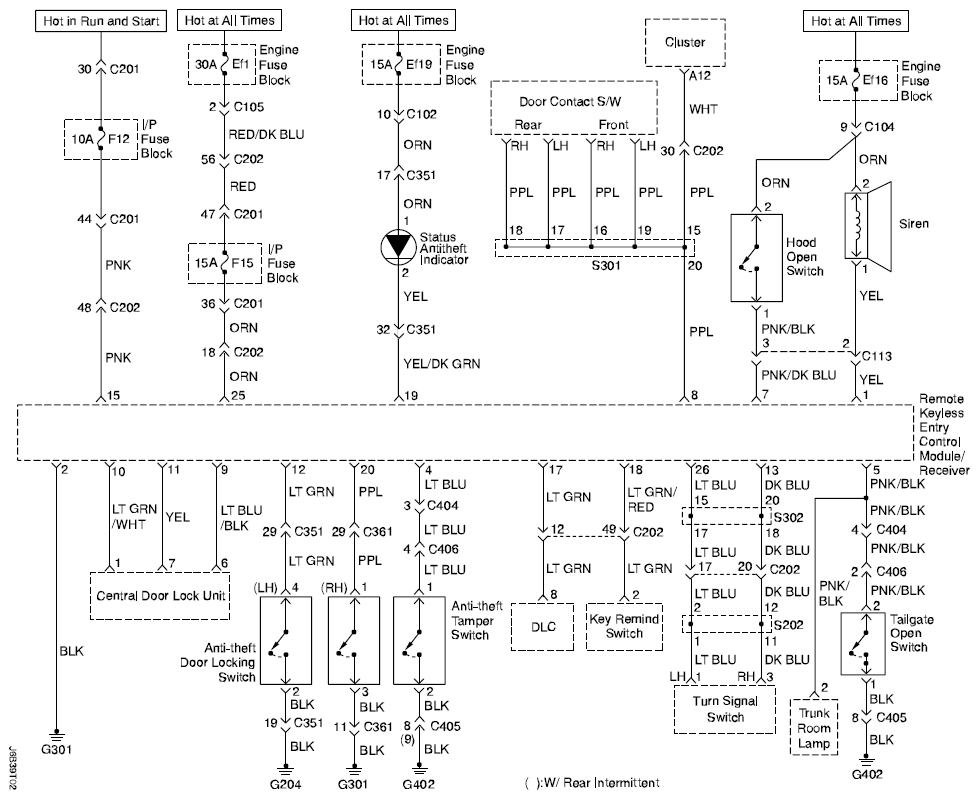

Fig 1: Remote Keyless Entry And Anti-Theft System Circuit Wiring Diagram - Hatchback Model
G04718243Courtesy of SUZUKI OF AMERICA CORP.
