DTC No. 33: Control Module Communication Bus Off: Wiring Diagram

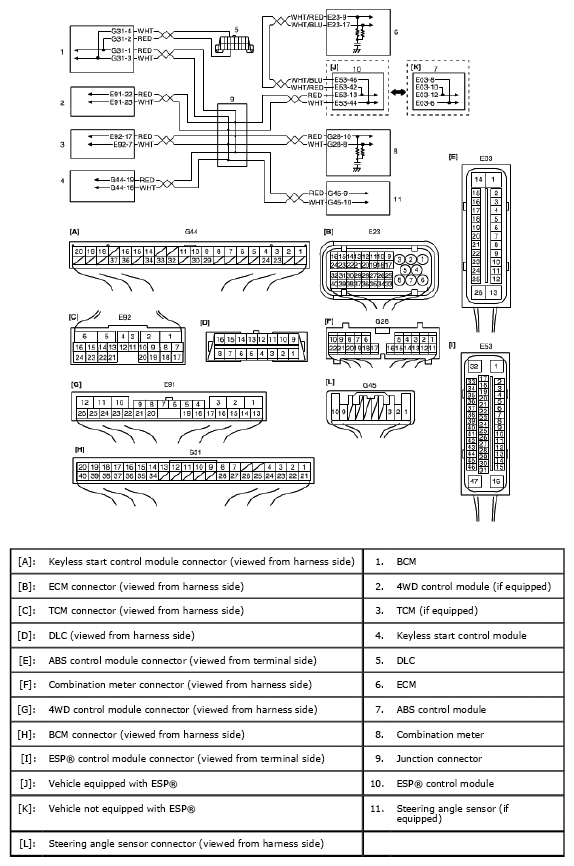

Fig 1: Control Module Communication Bus Off - Wiring Diagram
G04810080Courtesy of SUZUKI OF AMERICA CORP.
