Manual Transmission Front Case Disassembly And Assembly: Disassembly

Remove pump seal (1) and oil seal (2) from front case using special tools.

Special Tool

1. 09941-64511
2. 09930-30104

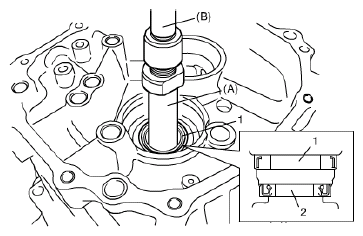

   Fig 1: Identifying Pump Seal & Oil Seal From Front Case With Special Tools

   Courtesy of SUZUKI OF AMERICA CORP.
