Manual Transmission Assembly Components

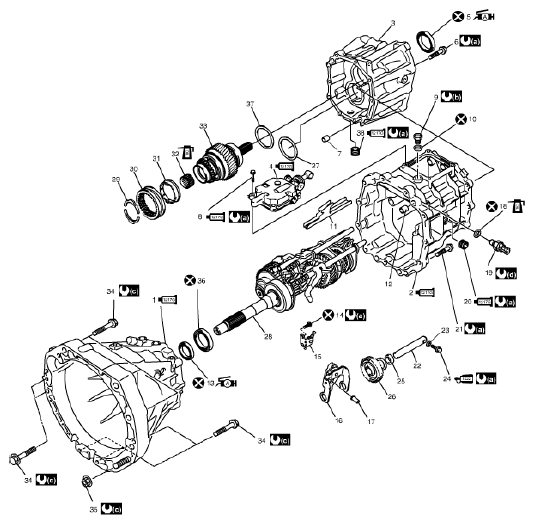

Fig 1: Exploded View Of Manual Transmission Assembly Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.

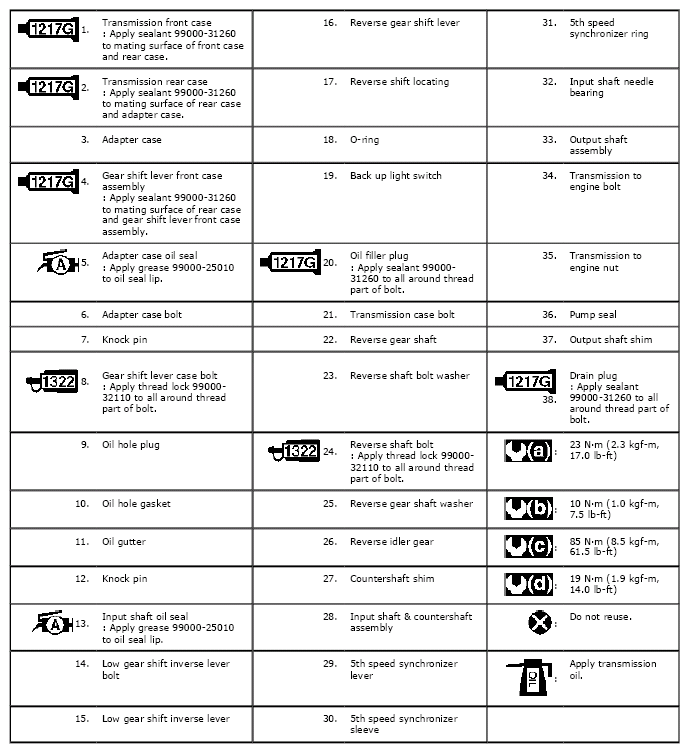

Fig 2: Manual Transmission Assembly Components Reference Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
