Gear Shift Shaft And Fork Components

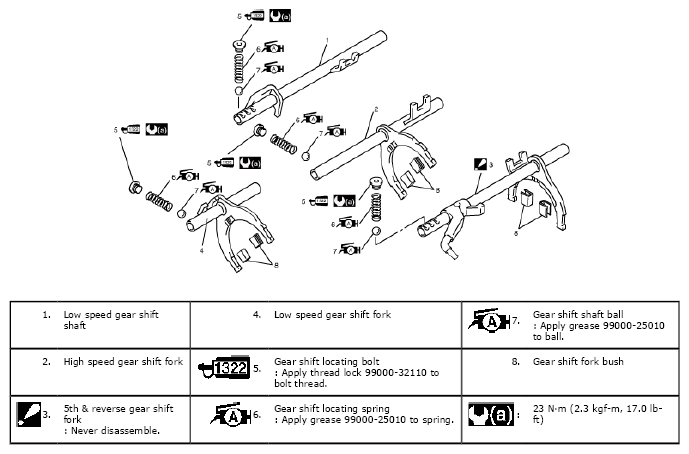

Fig 1: Exploded View Of Gear Shift Shaft & Fork Components With Torque Specifications
G04808910Courtesy of SUZUKI OF AMERICA CORP.
