Extension Case Assembly Components

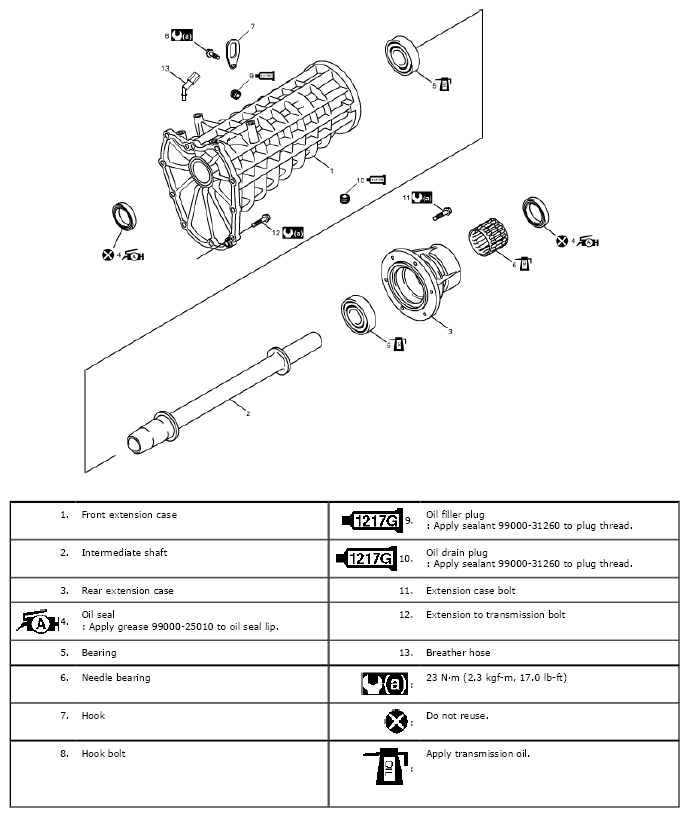

Fig 1: Exploded View Of Extension Case Assembly Components With Torque Specifications
G04809004Courtesy of SUZUKI OF AMERICA CORP.
