Engine Rear Mounting Replacement

When replacement of mounting parts are necessary, torque bolts as specified below.

Tightening torque

Engine rear mounting No. 1 bolt a: 55 N.m (5.5 kg-m, 40.0 lb-ft)

Engine rear mounting member bolt b: 55 N.m (5.5 kg-m, 40.0 lb-ft)

Engine rear mounting No. 2 bolt c: 55 N.m (5.5 kg-m, 40.0 lb-ft)

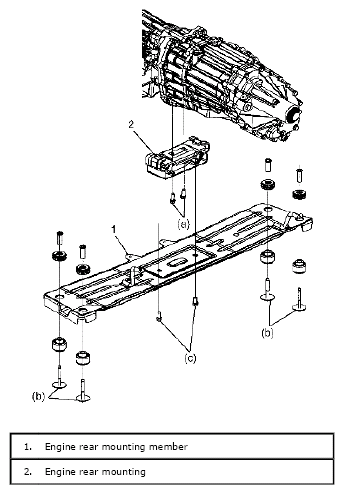

Fig 1: Identifying Engine Rear Mounting

Courtesy of SUZUKI OF AMERICA CORP.
