Tire Rotation

To equalize wear, rotate tires according to figure. Radial tires should be rotated periodically. Set tire pressure.

NOTE: Due to their design, radial tires tend to wear faster in the shoulder area, particularly in front positions. This makes regular rotation especially necessary.

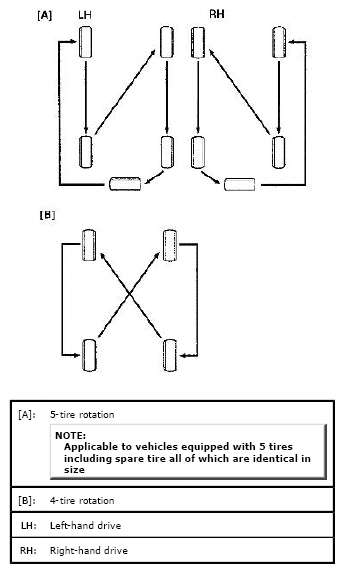

Fig 1: Identifying Tires Rotation Diagram
G04807956Courtesy of SUZUKI OF AMERICA CORP.
