Balancing Wheels Description

There are two types of wheel and tire balance: static and dynamic. Static balance, as shown in the figure, is equal distribution of weight around wheel. Wheels that are statically unbalanced cause bouncing action called tramp. This condition will eventually cause uneven tire wear.

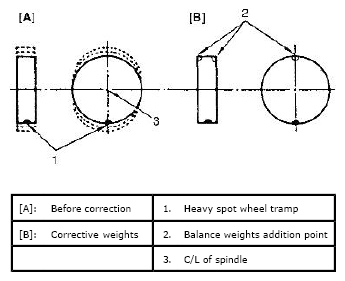

Fig 1: Wheel And Tire Balance Diagram (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Dynamic balance, as shown in the figure, is equal distribution of weight on each side of wheel centerline so that when the tire spins there is no tendency for the assembly to move from side to side. Wheels that are dynamically unbalanced may cause shimmy.

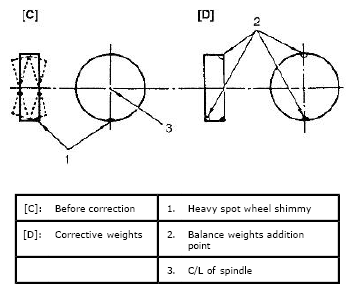

Fig 2: Wheel And Tire Balance Diagram (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
