Upper Arm Removal And Installation: Removal

  1. Hoist vehicle and remove rear wheels.
  2. Remove control rod refer to CONTROL ROD REMOVAL AND INSTALLATION .
  3. Remove trailing rod refer to TRAILING ROD REMOVAL AND INSTALLATION .
  4. Remove lower arm refer to LOWER ARM REMOVAL AND INSTALLATION .
  5. Remove rear suspension knuckle refer to REAR SUSPENSION KNUCKLE REMOVAL AND INSTALLATION .
  6. Remove wheel sensor bolts (1) from upper arm (2).

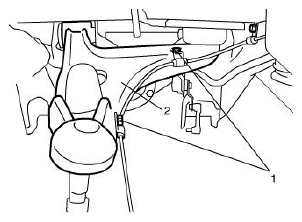

    Fig 1: Identifying Wheel Sensor Bolts
    G04807890Courtesy of SUZUKI OF AMERICA CORP.
  7. Remove upper arm bolts (1) and then upper arm (2).

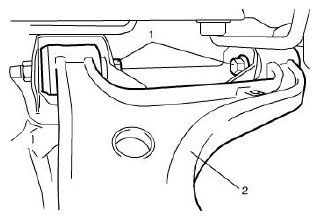

    Fig 2: Identifying Upper Arm Bolts
    G04807891Courtesy of SUZUKI OF AMERICA CORP.
