Trailing Rod Removal And Installation: Removal

Hoist vehicle and remove rear wheels.
Support lower arm (1) with jack (2).

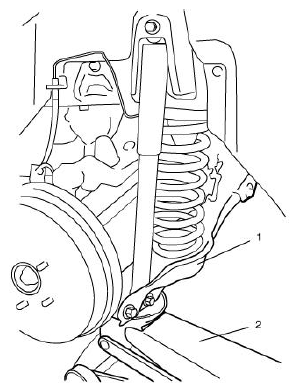

Fig 1: Supporting Lower Arm With Jack
Courtesy of SUZUKI OF AMERICA CORP.
Remove air suction pipe bolts (1) for 5door model only.

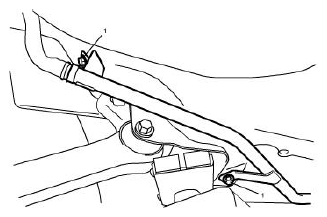

Fig 2: Identifying Air Suction Pipe Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove trailing rod front bolt (1) and trailing rod rear bolt (2) and then trailing rod (3).

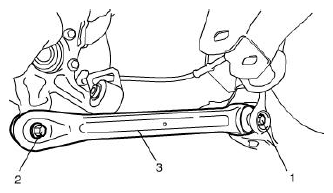

Fig 3: Identifying Trailing Rod Front & Rear Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove trailing rod mount bracket bolt (1) and then trailing rod mount bracket (2).

Fig 4: Identifying Trailing Rod Mount Bracket & Bolt
