Lower arm adjustment

Loosen right and left lower arm mount nuts (1).

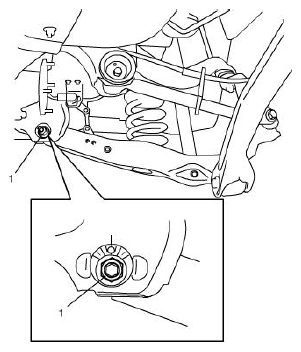

Fig 1: Identifying Lower Arm Mount Nut
Courtesy of SUZUKI OF AMERICA CORP.
Adjust toe and camber to satisfy the specification by turning right and left lower arm inner bolts (cam bolts) (1) with same amount.
NOTE: When bolt is turned a-direction, camber becomes "+" and toe becomes "OUT". When bolt is turned b-direction, camber becomes "-" and toe becomes "IN".

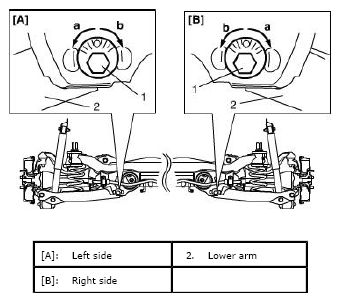

Fig 2: Identifying Lower Arm Inner Bolts
Courtesy of SUZUKI OF AMERICA CORP.
After adjustment, tighten right and left nuts to specified torque while holding cam bolt with another wrench to prevent it from turning.
Tightening torque

Lower arm mount nut: 135 N.m (13.5 kg-m, 98.0 lb-ft)
