Lower Arm/Bushing Disassembly And Assembly: Assembly

Press-fit suspension lateral link bushing (2) by using press (1) and special tool.
CAUTION: Be sure to use new bushing.

Special Tool
1. 09913-85210

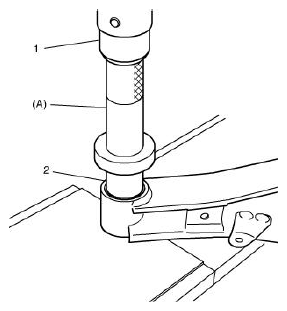

  Fig 1: Identifying Suspension Lateral Link Bush Installation Positions Using Special Tool
  Courtesy of SUZUKI OF AMERICA CORP.
Press-fit bushing (1) so that dimension "A" and "B" in figure become equal.

Fig 2: Identifying Bush Dimension
Courtesy of SUZUKI OF AMERICA CORP.
