Control Rod Removal And Installation: Removal

  1. Hoist vehicle and remove rear wheels.

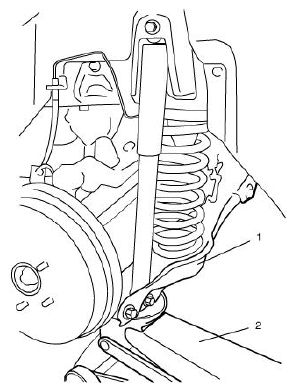

  2. Support lower arm (1) with jack (2).
    Fig 1: Supporting Lower Arm With Jack
    G04807862Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove parking cable hanger bolt (1).
    Fig 2: Identifying Parking Cable Hanger Bolt
    G04807863Courtesy of SUZUKI OF AMERICA CORP.

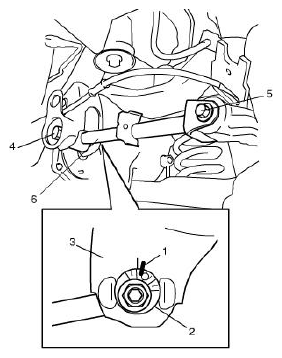

  4. Put match marks (1) on control rod washer (2) and on suspension frame (3) to install the bolts correctly in position.
  5. Remove control rod inner bolt (4) and control rod outer bolt (5) and then control rod (6).
    Fig 3: Matching Marks On Control Rod Washer & On Suspension Frame
    G04807864Courtesy of SUZUKI OF AMERICA CORP.
