Suspension Control Arm Removal And Installation: Removal

Hoist vehicle and remove wheel.
Uncaulk drive shaft nut (1).
Depress foot brake pedal and hold it. Remove drive shaft nut (1).

Fig 1: Identifying Drive Shaft Nut
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect tie-rod end (1) from steering knuckle (2) with puller (3). See STEERING KNUCKLE REMOVAL AND INSTALLATION .

Fig 2: Removing Tie-Rod End From Steering Knuckle With Puller
Courtesy of SUZUKI OF AMERICA CORP.
Loosen ball joint nut (1).

Fig 3: Identifying Ball Joint Nut
Courtesy of SUZUKI OF AMERICA CORP.

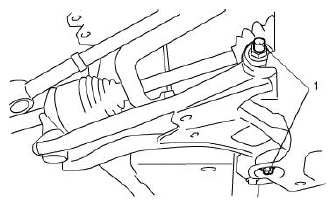

Remove suspension control arm bolts (1).

Fig 4: Identifying Suspension Control Arm Bolts
Courtesy of SUZUKI OF AMERICA CORP.

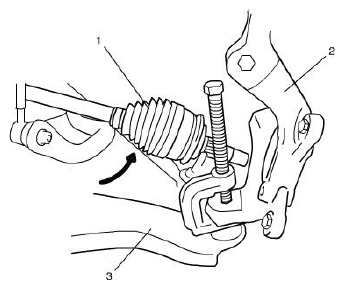

Disconnect ball joint from steering knuckle (2) with puller and then remove suspension control arm (2).

Fig 5: Identifying Ball Joint From Steering Knuckle With Puller
Courtesy of SUZUKI OF AMERICA CORP.
