Suspension Control Arm / Bushing Disassembly And Assembly: Assembly

CAUTION: Apply grease (included in the repair kit) to ball joint and inside of ball stud boot when the ball stud boot is replaced.

Front bushing
Press-fit front bushing (1) by using special tools and press (2).

Special Tool
1. 09945-55410
2. 09913-75821
  CAUTION: Be sure to use new bushing.

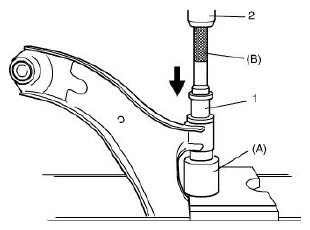

  Fig 1: Pressing Front Bushing With Special Tool
  Courtesy of SUZUKI OF AMERICA CORP.
Install rubber stopper (1).

Fig 2: Identifying Rubber Stopper
Courtesy of SUZUKI OF AMERICA CORP.
