Steering Angle Check and Adjustment

When tie-rod or tie-rod end was replaced, check toe and then also steering angle with turning radius gauge (1). If steering angle is not correct, check whether right and left tie-rods length "A" are equal.

Steering angle

Inside: 37.0° ± 3°

Outside: 32.0° ± 3°

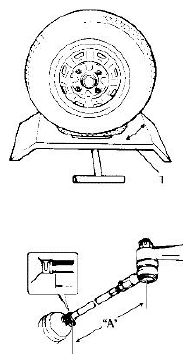

Fig 1: Identifying Tie-Rod Length
