Front Suspension Frame, Stabilizer Bar And/Or Bushings Removal And Installation: Installation

Reference: FRONT SUSPENSION FRAME CHECK

1. When installing stabilizer, loosely assemble all components while insuring that stabilizer is centered, side-to - side.
2. Install stabilizer bar (1), stabilizer bushing (2) and stabilizer mounting bracket (3) to suspension frame.
   NOTE: Install the stabilizer bar whose mark (5) is to front.
3. Tighten stabilizer bar mounting bracket bolts (4) to specified torque.

   Tightening torque

   Stabilizer bar mounting bracket bolt a: 50 N.m (5.0 kg-m, 36.5 lb-ft)

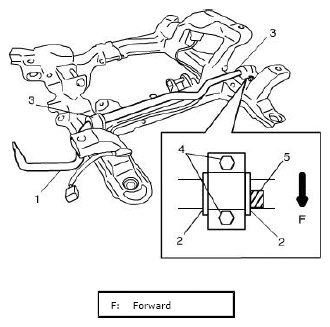

   Fig 1: Tightening Stabilizer Bar Mounting Bracket Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
4. Install P/S gear box assembly (1) and front differential assembly (2) (if equipped) referring to P/S GEAR CASE ASSEMBLY REMOVAL AND INSTALLATION and FRONT DIFFERENTIAL DISMOUNTING AND REMOUNTING :Front.
   Fig 2: Identifying P/S Gear Box Assembly & Front Differential Assembly

   Courtesy of SUZUKI OF AMERICA CORP.
5. Install suspension frame.
   WARNING: When installing suspension frame, be sure to apply some supporting equipment under it at well balanced position so as to prevent from its drop.
   CAUTION: Lug (2) in suspension frame (1) must be mated to the corresponding hole in body. And also engine front body side mounting bolts (3) must be mated to the corresponding holes (4) in suspension frame.

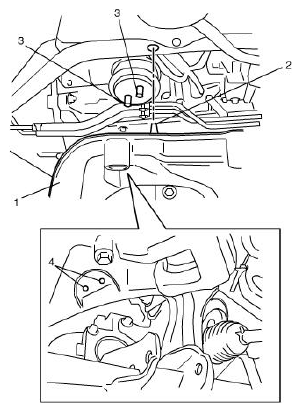

   Fig 3: Corresponding Holes In Suspension Frame

   Courtesy of SUZUKI OF AMERICA CORP.
6. Tighten suspension frame mounting bolts (1) and engine front body side mounting nuts (2) to specified torque.
   CAUTION: If reuse suspension frame mounting bolt, apply engine oil to thread, bearing and trunk surface.

   Tightening torque

   Suspension frame mounting bolt a: 135 N.m (13.5 kg-m, 98.0 lb-ft)

   Engine front body side mounting nut b: 55 N.m (5.5 kg-m, 40.0 lb-ft)

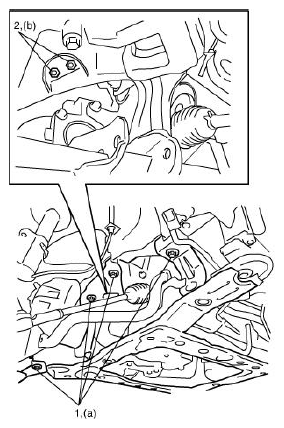

   Fig 4: Identifying Suspension Frame Mounting Bolts & Engine Front Body Side Mounting Nuts

   Courtesy of SUZUKI OF AMERICA CORP.
7. Remove chain hoist from engine and the rope (1) from the radiator (2).

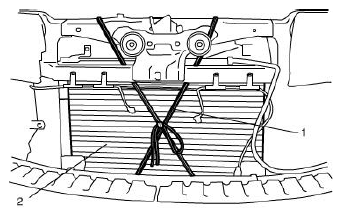

   Fig 5: Identifying Chain Hoist From Engine & Rope From Radiator

   Courtesy of SUZUKI OF AMERICA CORP.
8. Install hood referring to FRONT DOOR ASSEMBLY COMPONENTS .
9. Install front propeller shaft (if equipped) referring to PROPELLER SHAFT REMOVAL AND INSTALLATION .
10. Tighten pipe bracket (1) bolts to specified torque and then insert low pressure return hose (2) to low pressure return pipe (3).

    Tightening torque

    Pipe bracket bolt: 11 N.m (1.1 kg-m, 8.0 lb-ft)

    Fig 6: Identifying Pipe Bracket, Low Pressure Return Hose & Low Pressure Return Pipe

    Courtesy of SUZUKI OF AMERICA CORP.
11. Tighten union gear box bolt (1) to specified torque.

    Tightening torque

    Union gear box bolt a: 35 N.m (3.5 kg-m, 25.5 lb-ft)

    Fig 7: Identifying Union Gear Box Bolt

    Courtesy of SUZUKI OF AMERICA CORP.
12. Connect steering lower shaft from pinion shaft Steering referring to P/S GEAR CASE ASSEMBLY REMOVAL AND INSTALLATION .
13. Install stabilizer joints (1), and tighten nuts to specified torque. When tightening, hold stud with hexagon wrench.

    Tightening torque

    Stabilizer joint nut a: 60 N.m (6.0 kg-m, 43.5 lb-ft)

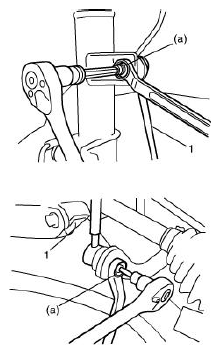

    Fig 8: Stabilizer Joints Nuts With Torque Specificationss

    Courtesy of SUZUKI OF AMERICA CORP.
14. Install right side and left side front drive shaft assembly (if equipped) referring to FRONT DRIVE SHAFT ASSEMBLY REMOVAL AND INSTALLATION :Front.
15. Install suspension control arm referring to SUSPENSION CONTROL ARM REMOVAL AND INSTALLATION .
16. Install engine under cover.
17. Install wheels (right & left) and lower hoist.
18. After installation, be sure to fill specified power steering fluid and bleed air referring to P/S SYSTEM AIR BLEEDING PROCEDURE .
