Front Strut Assembly Removal And Installation: Installation
Reference: FRONT STRUT ASSEMBLY CHECK
Install strut assembly by reversing removal procedure, noting the following instructions.

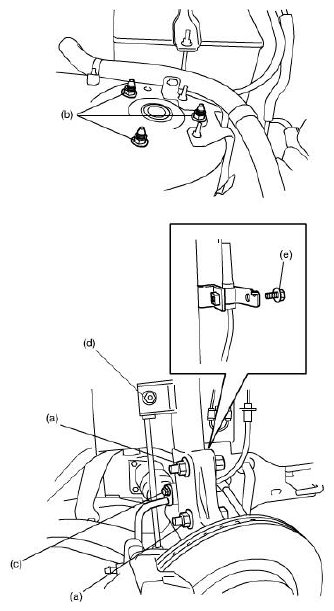

- Insert bolts in such direction as shown in figure.
- Tighten all fasteners to specified torque.
Tightening torque
Strut bracket nut a: 135 N.m (13.5 kg-m, 98.0 lb-ft)
Brake hose mounting bolt c: 25 N.m (2.5 kg-m, 18.0 lb-ft)
Stabilizer joint nut d: 60 N.m (6.0 kg-m, 43.5 lb-ft)
Front wheel speed sensor harness clamp bolt e: 10 N.m (1.0 kg-m, 7.5 lb-ft)
- Lower hoist and vehicle in unloaded condition, tighten strut support nuts (b) to specified torque.
Tightening torque
Strut support nut b: 50 N.m (5.0 kg-m, 36.5 lb-ft)
CAUTION: If reuse strut bracket bolt and nut, apply engine oil to thread, bearing and trunk surface.NOTE:- Don't twist brake hose and ABS wheel speed sensor harness (if equipped) when installing them.
- Insert strut bracket bolt from vehicle forward.
- Tighten wheel nuts to specified torque.
Tightening torque
Wheel nut: 100 N.m (10.0 kg-m, 72.5 lb-ft)
