P/S Pump And A/C Compressor (If Equipped) Drive Belt Inspection And Adjustment: Inspection
- Check that belt is free from any damage and properly fitted in pulley groove.

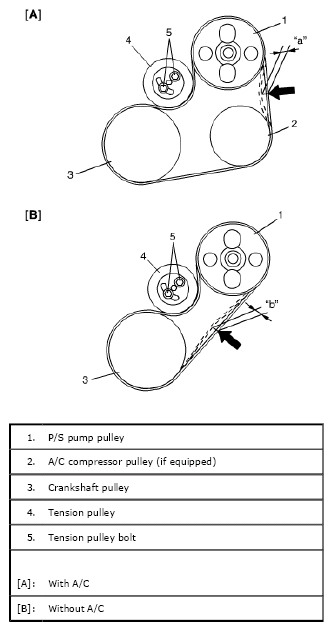

- Check belt tension by measuring how much it deflects when pushed at intermediate point between pulleys with about 10 kg (22 lb) force.
Deflection of P/S belt with A/C
- 5.5 - 6.5 mm (0.21 - 0.25 in).
Deflection of P/S belt without A/C
- 4 - 9 mm (0.16 - 0.35 in).
NOTE: When replacing drive belt, adjust drive belt tension to the following specifications.Deflection of new P/S belt with A/C
- 5 - 6 mm (0.19 - 0.23 in).
Deflection of new P/S belt without A/C
- 4 - 9 mm (0.16 - 0.35 in).
