Air bag system with side-air bag and curtain-air bag: Notes

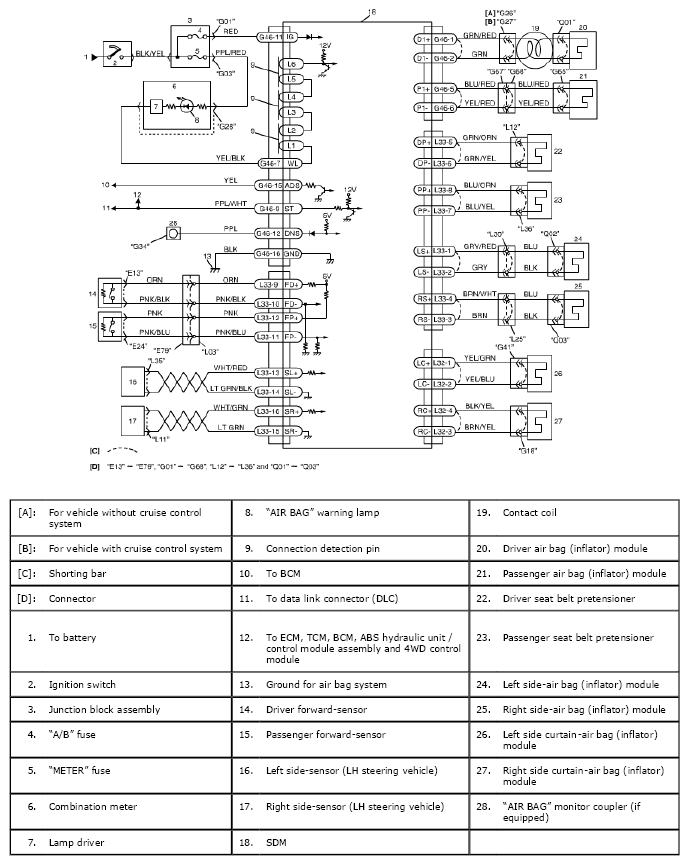

Fig 1: Air Bag System With Side-Air Bag And Curtain-Air Bag - Wiring Diagram
G04809517Courtesy of SUZUKI OF AMERICA CORP.

Terminal arrangement of SDM (viewed from harness side)

Fig 2: Identifying Terminal Arrangement Of SDM (Viewed From Harness Side)
G04809518Courtesy of SUZUKI OF AMERICA CORP.
