SDM Removal and Installation: Removal

Disconnect negative (-) cable at battery.
Disable air bag system referring to DISABLING AIR BAG SYSTEM:EXCEPT ADVANCED AIR BAG .
Remove console rear panel referring to CONSOLE BOX COMPONENTS .

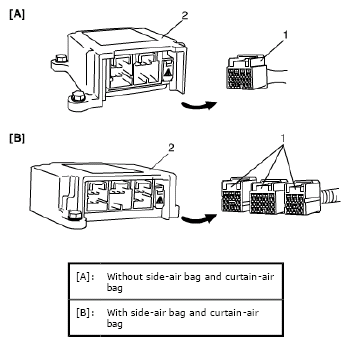

Disconnect SDM connector (1) from SDM (2).

Fig 1: Disconnecting SDM Connector From SDM
Courtesy of SUZUKI OF AMERICA CORP.
Remove SDM (1) from vehicle.

Fig 2: Identifying SDM Bolts
Courtesy of SUZUKI OF AMERICA CORP.
