DTC B1041: Passenger Air Bag Initiator Circuit Resistance High: Wiring Diagram

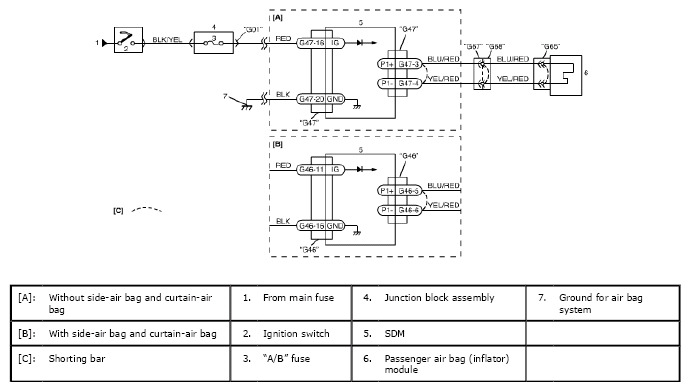

Fig 1: Passenger Air Bag Initiator Circuit Resistance High - Wiring Diagram
G04809593Courtesy of SUZUKI OF AMERICA CORP.
