"AIR BAG" Warning Lamp Flashes: Wiring Diagram

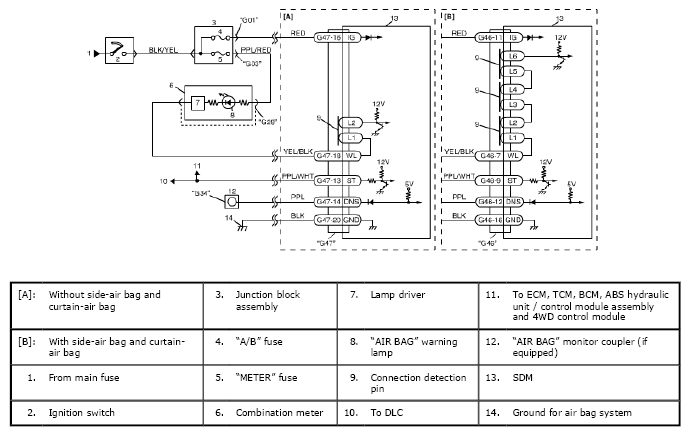

Fig 1: "AIR BAG" Warning Lamp Flashes - Wiring Diagram
G04809574Courtesy of SUZUKI OF AMERICA CORP.
