"AIR BAG" Warning Lamp Comes ON Steady: Wiring Diagram

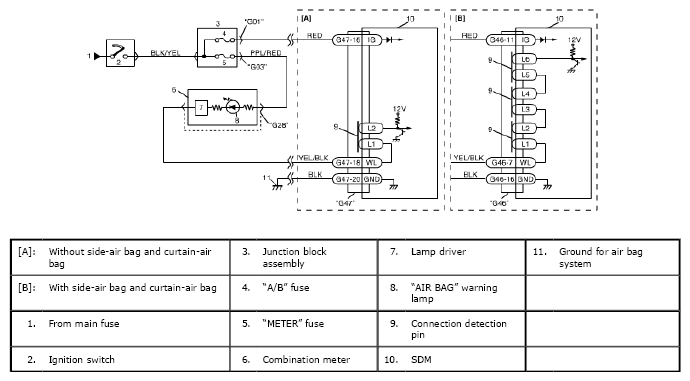

Fig 1: "AIR BAG" Warning Lamp Comes ON Steady - Wiring Diagram
G04809571Courtesy of SUZUKI OF AMERICA CORP.
