Air Bag System Components, Wiring and Connectors Location

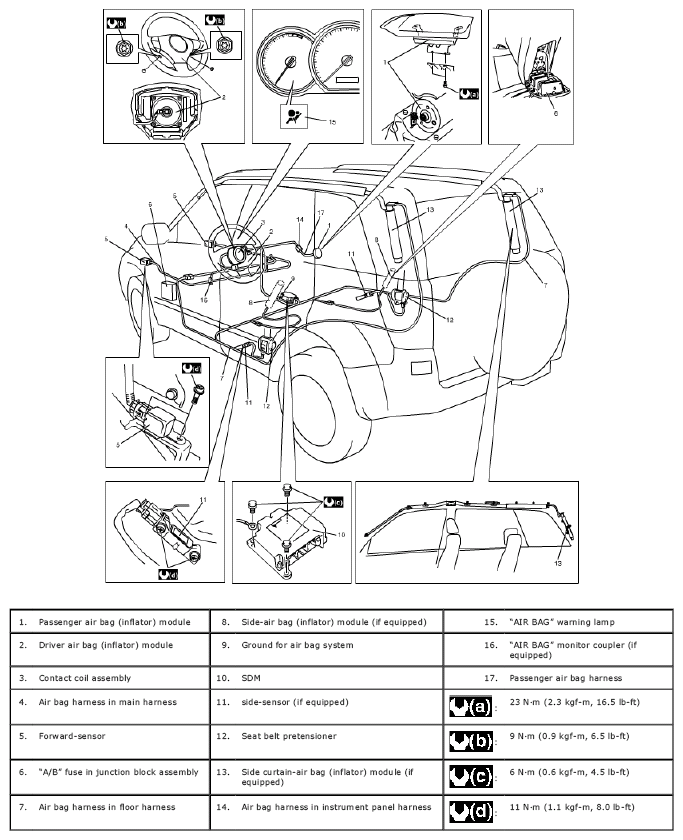

Fig 1: Identifying Air Bag System Components, Wiring And Connectors Location
G04809519Courtesy of SUZUKI OF AMERICA CORP.
