Air Bag System Wiring Circuit Diagram: Notes

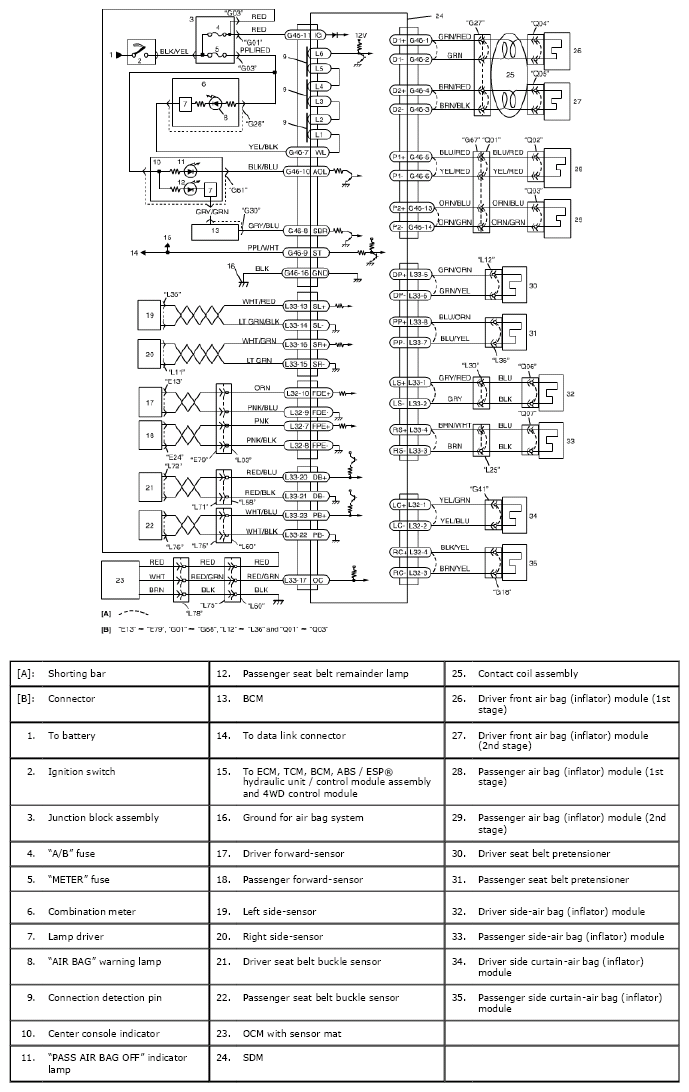

Fig 1: Air Bag System Wiring Circuit Diagram
G04809303Courtesy of SUZUKI OF AMERICA CORP.

Terminal arrangement of SDM (viewed from harness side)

Fig 2: Identifying Terminal Arrangement Of SDM (Viewed From Harness Side)
G04809304Courtesy of SUZUKI OF AMERICA CORP.
