ID Registration With Suzuki Scan Tool
- Connect Suzuki scan tool to data link connector (DLC).
- Turn ignition switch to ON.

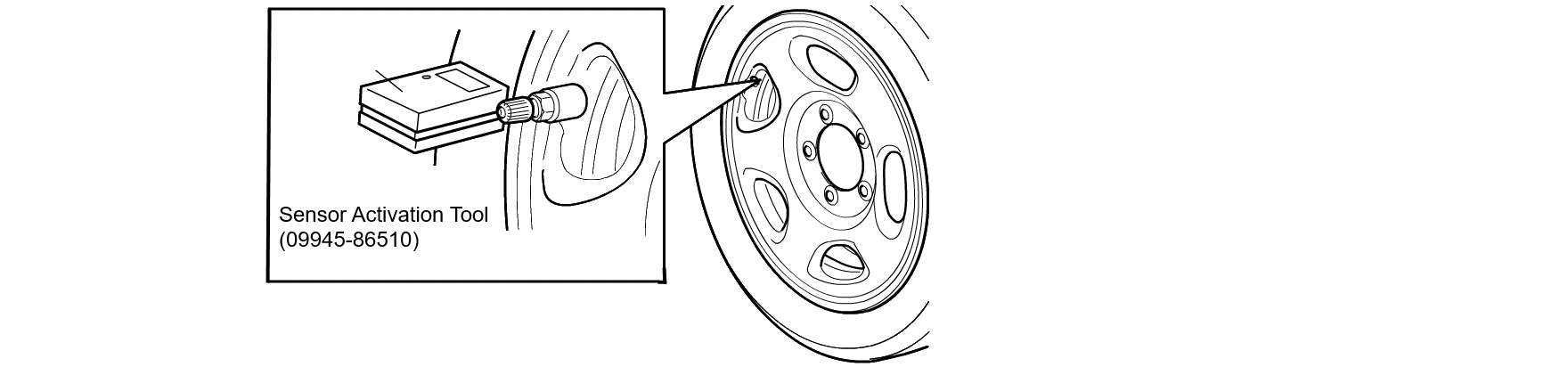

- Activate each tire pressure sensor according to the instructions displayed on Suzuki scan tool, within 90 seconds (this step also requires sensor activation tool 09945-86510).NOTE: When tire pressure sensor is to be activated, set the sensor activation tool (09945-86510) to the same position as shown in the illustration (see Fig 1). If the special tool is set to other positions, there is a possibility that tire pressure sensor cannot be activated. When tire pressure sensor is activated, flashing LED and beeping sound of special tool indicate an activation of the tire pressure sensor. In the case that the LED does not flash and beeping sound is not heard, replace faulty tire pressure sensor.
- When tire pressure sensor is activated, ID code of the tire pressure sensor is registered automatically in BCM. When "ID Registration status" indicated on Suzuki scan tool is "Complete", registration has been completed. If "Time Out" is indicated, perform the registration procedure all over. Also, it is possible to check the number of ID codes of tire pressure sensors received by BCM by observing the flashing pattern of the low tire pressure warning light.NOTE: When BCM receives each ID code of 4 tire pressure sensors, BCM turns ON low tire pressure warning light in combination meter for 5 seconds.
- Turn ignition switch OFF, and disconnect Suzuki scan tool from DLC.
