Electronic Components Location For Heater (For Vehicle Without A/C)

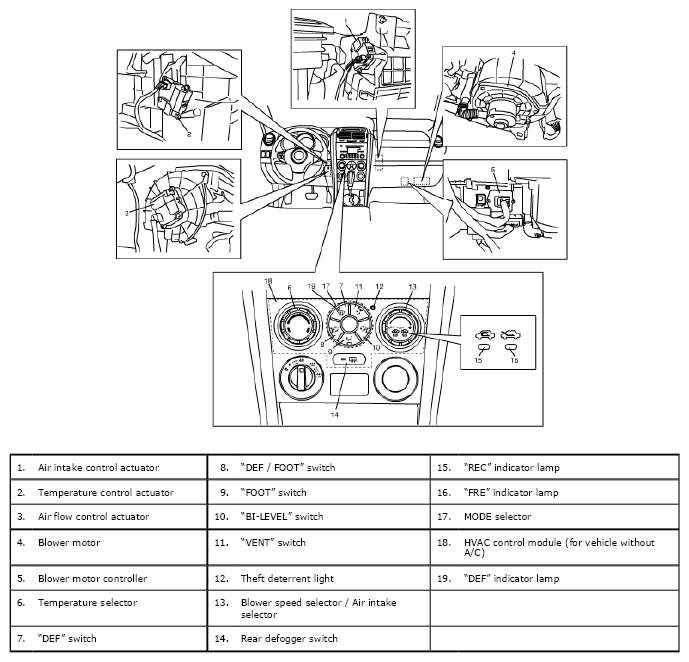

Fig 1: Identifying Electronic Components Location For Heater (For Vehicle Without A/C)
G04809178Courtesy of SUZUKI OF AMERICA CORP.
