Operation Procedure For Charging A/C With Refrigerant: Recovery

When discharging refrigerant out of A/C system, always recover it by using refrigerant recovery and recycling equipment (1). Discharging refrigerant HFC-134a (R134a) into atmosphere would cause adverse effect to environments.

NOTE:

After recovering refrigerant from system the amount of removed compressor oil must be measured for replenishing compressor oil. Refer to PRECAUTIONS ON REPLENISHING COMPRESSOR OIL .
When handling recovery and recycling equipment, be sure to follow the instruction manual for the equipment.

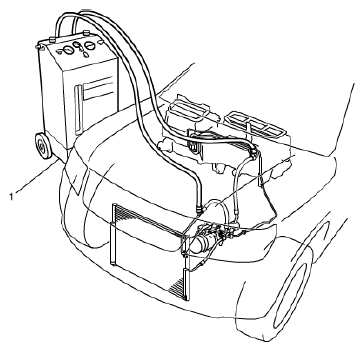

Fig 1: Identifying Refrigerant Recovery & Recycling Equipment
Courtesy of SUZUKI OF AMERICA CORP.
