HVAC Unit Components

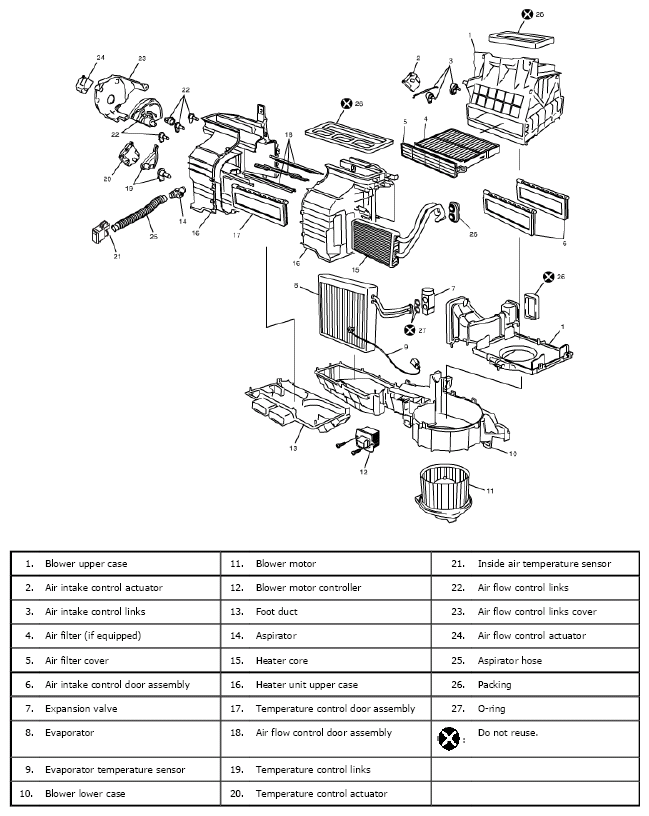

Fig 1: Identifying HVAC Unit Components

Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Be careful not to damage A/C evaporator fins. If A/C evaporator fin is bent, straighten it by using flat head screwdriver or pair of pliers.
