Expansion Valve Removal And Installation: Removal

  1. Recover refrigerant from the A/C system with recovery and recycling equipment referring to "Recovery" in OPERATION PROCEDURE FOR CHARGING A/C WITH REFRIGERANT .
  2. Loosen a bolt (1) and remove pipes from expansion valve (2).
  3. Loosen bolts (3) and remove expansion valve.

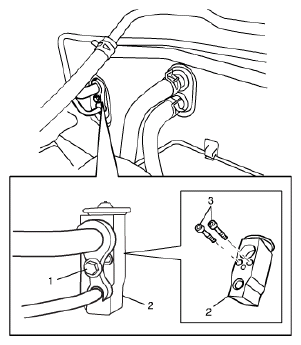

    Fig 1: Identifying Expansion Valve
    G04809258Courtesy of SUZUKI OF AMERICA CORP.
