A/C Refrigerant Pressure Sensor Removal And Installation: Removal

Recover refrigerant from the A/C system with the recovery and recycling equipment referring to "Recovery" in OPERATION PROCEDURE FOR CHARGING A/C WITH REFRIGERANT .
Disconnect negative (-) cable from battery.
Disconnect A/C refrigerant pressure sensor connector.
Remove A/C refrigerant pressure sensor (1) from liquid pipe (2).

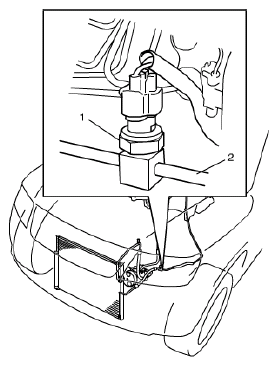

Fig 1: Identifying A/C Refrigerant Pressure Sensor & Liquid Pipe
Courtesy of SUZUKI OF AMERICA CORP.
