Keyless Start System Electric Wiring Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

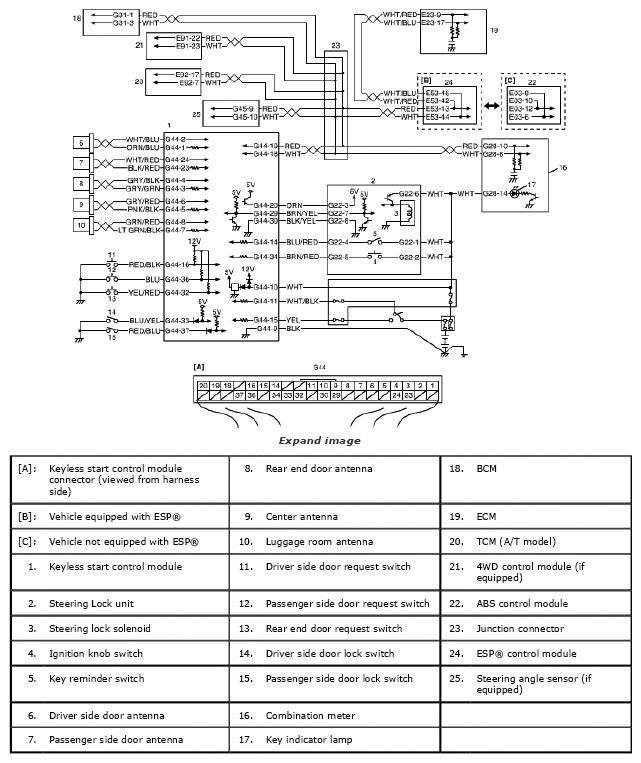

Fig 1: Keyless Start System - Circuit Diagram
G04810057Courtesy of SUZUKI OF AMERICA CORP.
