Key Indicator Lamp Circuit Check (Key Indicator Lamp Doesn't Light When Ignition Knob Switch Is Pushed.): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

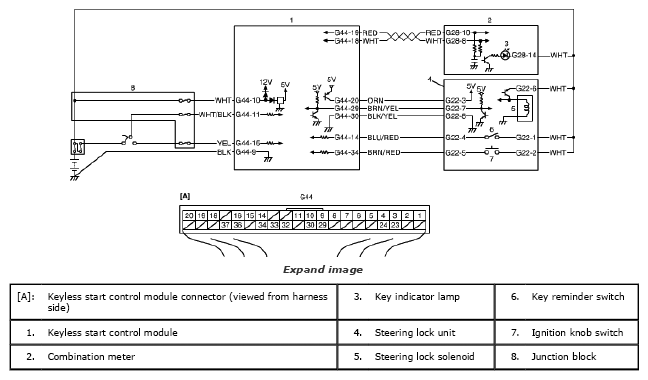

Fig 1: Key Indicator Lamp Circuit Check - Wiring Diagram
G04810076Courtesy of SUZUKI OF AMERICA CORP.
