DTC No. 51/No. 52/No. 53: Driver Side/Passenger Side/Rear End Door Request Switch Failure: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

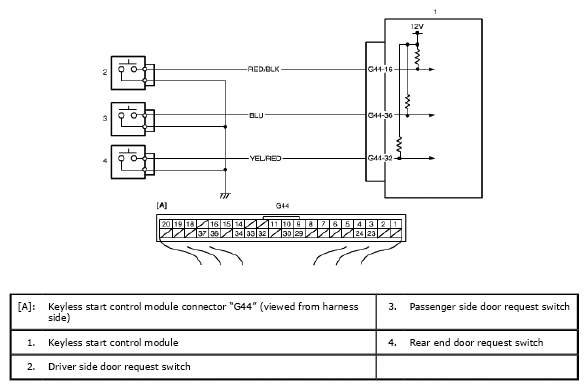

Fig 1: Driver Side/Passenger Side/Rear End Door Request Switch - Wiring Diagram
G04810081Courtesy of SUZUKI OF AMERICA CORP.
