Key Interlock Cable Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Lay interlock cable to its original cabling route.
Turn ignition switch to "ACC" position.
Insert cable casing cap (1) into key cylinder cover (2) securely.

Fig 1: Identifying Casing Cap & Cylinder Cover
Courtesy of SUZUKI OF AMERICA CORP.

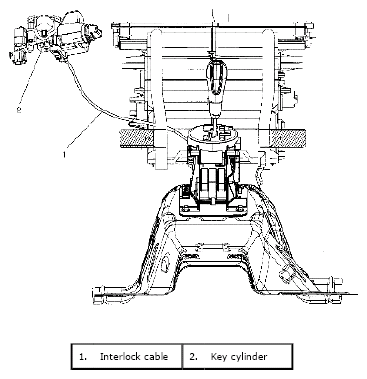

Pass and connect interlock cable as shown in the figure.

Fig 2: Connecting Interlock Cable
Courtesy of SUZUKI OF AMERICA CORP.
Pull out lock button (1) of selector side cable end (2).

Fig 3: Pulling Out Lock Button Of Selector Side Cable End
Courtesy of SUZUKI OF AMERICA CORP.
Shift selector lever to "N" position.
Install cable casing cap (3) or selector bracket (4).
Connect cable end (1) to interlock cam (2) with ignition switch turned to "ACC" position.
Drive lock button (5) in cable end until it locks cable expansion and contraction.

Fig 4: Identifying Lock Button, Interlock Cam & Cable Casing Cap
Courtesy of SUZUKI OF AMERICA CORP.
Install steering column cover.
If the vehicle is equipped with air bag system, connect negative cable at battery and enable air bag system, referring to ENABLING AIR BAG SYSTEM: ADVANCED AIR BAG or ENABLING AIR BAG SYSTEM: EXCEPT ADVANCED AIR BAG .
