A/T Fluid Change

WARNING: This page is about a different variant/trim than selected.

Lift up vehicle.
When engine is cool, remove drain plug (1) from oil pan and drain A/T fluid.
Install drain plug with new gasket.
Tightening torque

A/T fluid drain plug (a): 20 N.m (2.0 kg-m, 14.5 lb-ft)

Fig 1: Identifying Drain Plug
Courtesy of SUZUKI OF AMERICA CORP.
Lower vehicle and fill proper amount of specified fluid.
Check fluid level referring to "AT NORMAL OPERATING TEMPERATURE " under A/T Fluid Level Check.
A/T fluid specification

SUZUKI ATF 3317 or Mobil ATF 3309

A/T fluid capacity reference value

When draining from drain plug hole: Approx. 3.0 liters (6.34/5.28 US/lmp. pt.)

When overhauling: Approx. 9.9 liters (20.92/17.42 US/lmp. pt.)

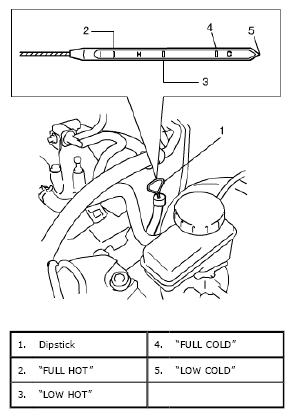

Fig 2: Identifying Mark On Dipstick
Courtesy of SUZUKI OF AMERICA CORP.
