Front Strut Assembly Removal and Installation: Installation

WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Reference: FRONT STRUT ASSEMBLY CHECK

Install strut assembly by reversing removal procedure, noting the following instructions.

Insert bolts in such direction as shown in figure.
Tighten all fasteners to specified torque.
Tightening torque

Strut bracket nut (a): 135 N.m (13.5 kg-m, 98.0 lbf-ft)

Brake hose mounting bolt (c): 25 N.m (2.5 kg-m, 18.0 lbf-ft)

Stabilizer joint nut (d): 60 N.m (6.0 kg-m, 43.5 lbf-ft)

Front wheel speed sensor harness clamp bolt (e): 10 N.m (1.0 kg-m, 7.5 lbf-ft)
Lower hoist and vehicle in unloaded condition, tighten strut support nuts (b) to specified torque.
Tightening torque

Strut support nut (b): 50 N.m (5.0 kg-m, 36.5 lbf-ft)

CAUTION: If reuse strut bracket bolt and nut, apply engine oil to thread, bearing and trunk surface.
NOTE:
- Don't twist brake hose and wheel speed sensor harness when installing them.
- Insert strut bracket bolt from vehicle forward.

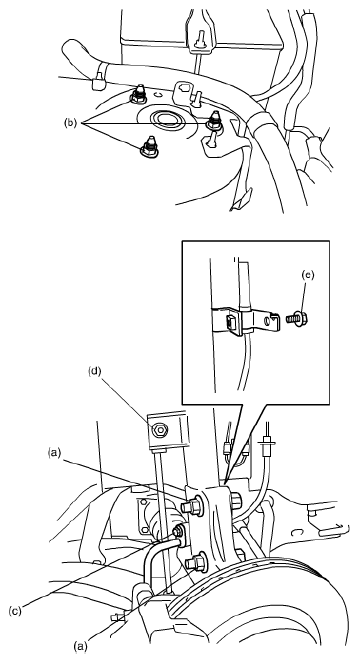

Fig 1: Identifying Brake Hose Mounting Bolt, Strut Bracket Nut And Stabilizer Joint Nut
Courtesy of SUZUKI OF AMERICA CORP.
Tighten wheel nuts to specified torque.
Tightening torque

Wheel nut: 100 N.m (10.0 kg-m, 72.5 lbf-ft)
