Operation Procedure for Charging A/C with Refrigerant: Recovery
WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

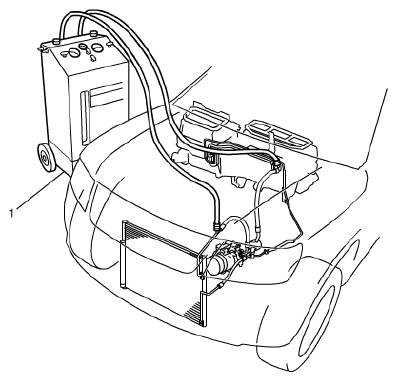

When discharging refrigerant out of A/C system, always recover it by using refrigerant recovery and recycling equipment (1). Discharging refrigerant HFC-134a (R134a) into atmosphere would cause adverse effect to environments.
NOTE:
- After recovering refrigerant from system the amount of removed compressor oil must be measured for replenishing compressor oil. Refer to PRECAUTIONS ON REPLENISHING COMPRESSOR OIL .
- When handling recovery and recycling equipment, be sure to follow the instruction manual for the equipment.
