A/C Refrigerant Pressure Sensor Removal and Installation: Removal
WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Recover refrigerant from the A/C system with the recovery and recycling equipment referring to "Recovery" in OPERATION PROCEDURE FOR CHARGING A/C WITH REFRIGERANT .
- Disconnect negative (-) cable from battery.
- Disconnect A/C refrigerant pressure sensor connector.

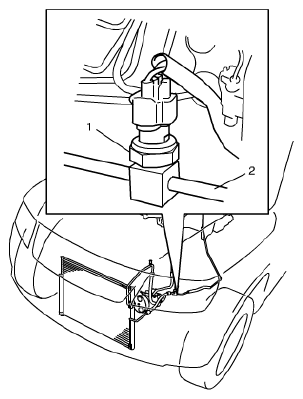

- Remove A/C refrigerant pressure sensor (1) from liquid pipe (2).
