A/C Compressor Relay Inspection

WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Remove included in integration relay No.2 (1) from vehicle.

Fig 1: Identifying Integration Relay
Courtesy of SUZUKI OF AMERICA CORP.
Check that there is no continuity between terminals "C" and "D".
If there is continuity, replace integration relay No.2 (1).
Connect battery positive (+) terminal to terminal "B" of relay. Connect battery negative (-) terminal to terminal "A" of relay. Check for continuity between terminal "C" and "D". If there is no continuity when relay is connected to the battery, replace integration relay No.2 (1).

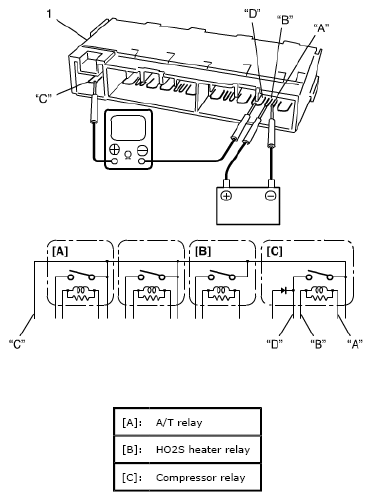

Fig 2: Checking Continuity Between A/C Compressor Relay Terminals
Courtesy of SUZUKI OF AMERICA CORP.
