Sub-Cool A/C System Description
WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

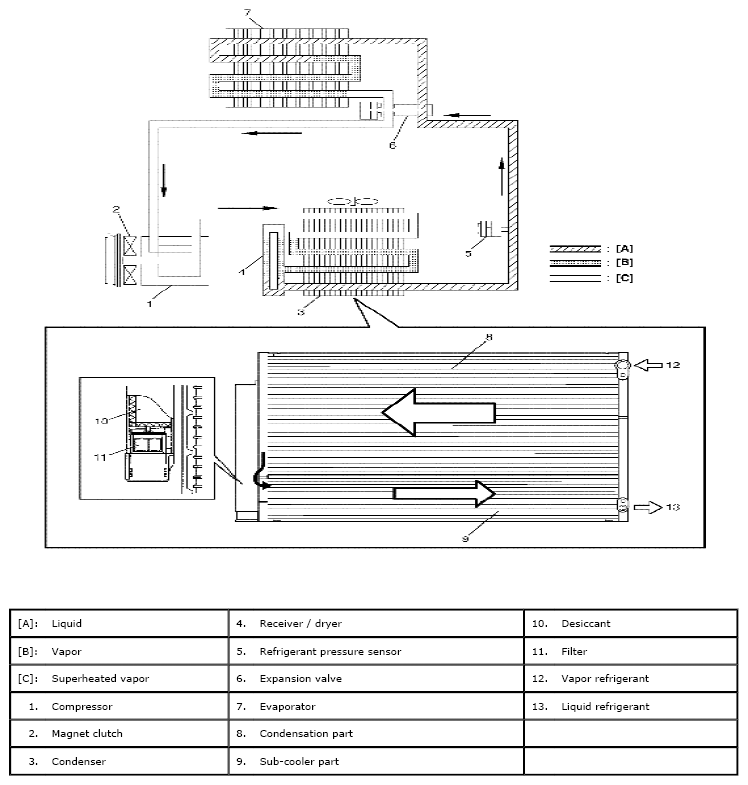

In the sub-cool A/C system (condenser (3) integrated with receiver / dryer (4)), the inside of the condenser is divided into the condensation part and the sub-cooler part, and the receiver / dryer is located between those. In the receiver / dryer (4), the refrigerant is separated into the vapor refrigerant and the liquid refrigerant. Only the liquid refrigerant is delivered to the sub-cooler part of the condenser. The refrigerant is super cooled by the sub-cooler part of the condenser.
