On-Board Diagnostic System Description (Other than LCD model)
WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
HVAC control module detects malfunction, which may occur in the following area.
- Outside temperature sensor
- Inside temperature sensor
- Sunload sensor (short circuit)
- Wheel speed sensor
- CKP sensor
- CAN communication line
- Serial communication line
- A/C evaporator temperature sensor
- ECT sensor
- Refrigerant pressure sensor
- Temperature control actuator
- Air flow control actuator
- Air intake control actuator
- Temperature selector of HVAC control module
- Blower speed selector of HVAC control module

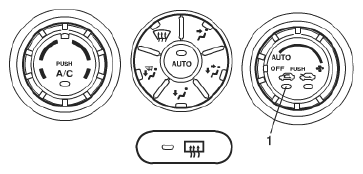

When HVAC control module detects malfunction, the REC (recirculation) indicator light (1) flashes to warn and the diagnostic trouble code (DTC) is stored in the memory of the module.
When diagnosing trouble, the DTC can be checked according to DTC Check .
