Front Floor Console Side Trim Panel Replacement - Right Side

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

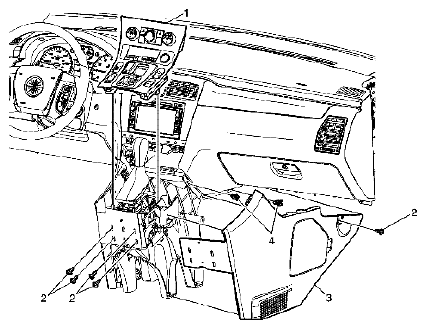

Fig 1: Identifying Instrument Panel Lower Brace Bezel & Console Trim Panel Assembly

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove the Floor Console. Refer to CONSOLE REPLACEMENT .
1	Instrument Panel Lower Brace Bezel. Refer to INSTRUMENT PANEL LOWER BRACE BEZEL REPLACEMENT .
2	Console Trim Panel Assembly Screws (Qty 4) CAUTION: Refer to FASTENER NOTICE in Cautions and Notices. Tightening torque 2 N.m (18 lb in)
3	Console Trim Panel Assembly - Right

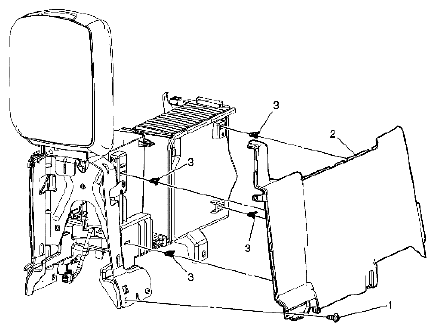

Fig 1: Identifying Console Side Trim Panel & Retainer Clips

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove the console. Refer to CONSOLE REPLACEMENT . Remove the Console Upper Trim Plate. Refer to FRONT FLOOR UPPER CONSOLE TRIM PLATE REPLACEMENT .
1	Console Side Trim Panel Screw (Qty: 1) CAUTION: Refer to FASTENER NOTICE in Cautions and Notices. Tightening torque 2 N.m (18 lb in)
2	Console Side Trim Panel - Right
3	Retainer Clips (Qty 4)
