Floor Panel Carpet Replacement (Front)

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

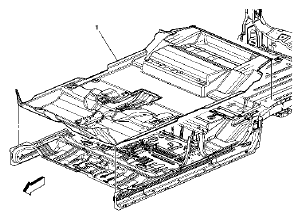

Fig 1: Identifying Front Floor Panel Carpet Assembly

Courtesy of SUZUKI OF AMERICA CORP.

FRONT FLOOR PANEL CARPET ASSEMBLY COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove the front seats. Refer to REMOVAL PROCEDURE . Remove the rear seats. Refer to REMOVAL PROCEDURE . Remove the front carpet retainer. Refer to FRONT CARPET RETAINER REPLACEMENT . Remove the rear carpet retainer. Refer to REAR CARPET RETAINER REPLACEMENT . Remove the center console trim panels and the center console. Refer to CONSOLE REPLACEMENT .
1	Front Floor Panel Carpet Assembly Tip: Remove the floor carpet by pulling the carpet from under the center pillar assemblies and lifting the carpet out of the vehicle.
