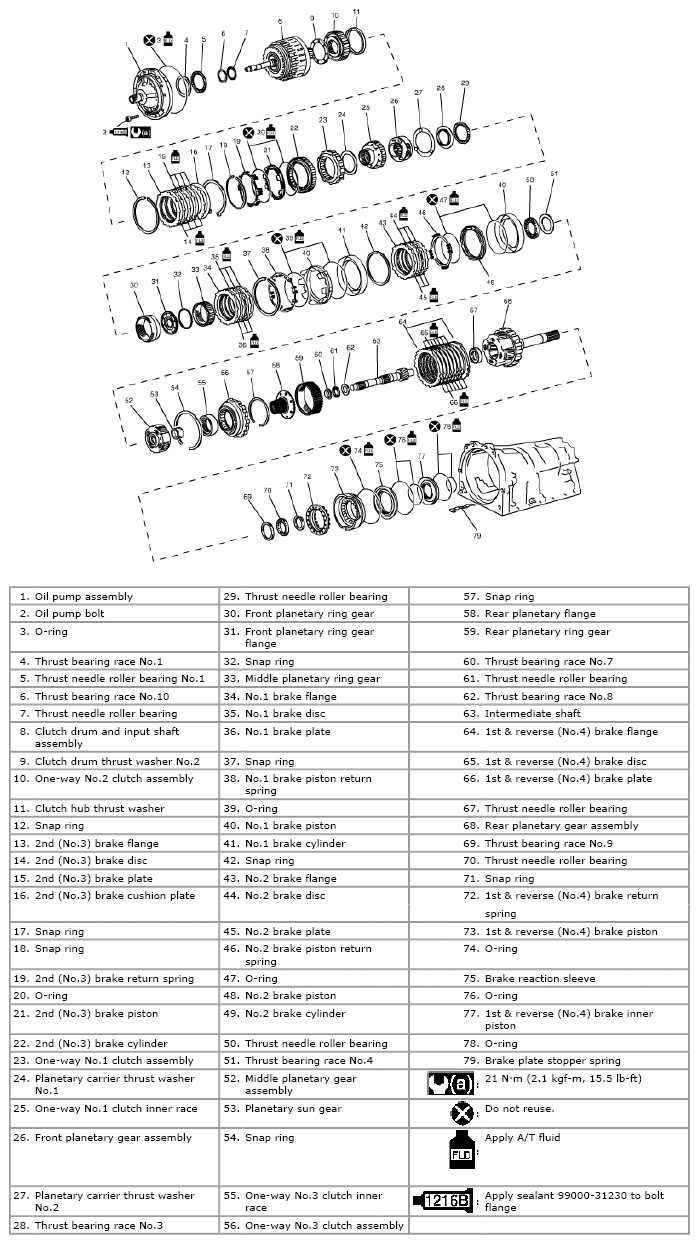

Fig 1: Automatic Transmission Unit Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Fig 1: Automatic Transmission Unit Components With Torque Specifications
