Remote Audio Control Switch Inspection (if equipped)
WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara and 2007 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
Reference: REMOTE AUDIO CONTROL SWITCH REMOVAL AND INSTALLATION (IF EQUIPPED)
- Remove driver air bag (inflator) module referring to Driver Air Bag (Inflator) Module Removal and Installation: Advanced Air Bag or Driver Air Bag (Inflator) Module Removal and Installation: Except Advanced Air Bag.
- Disconnect remote audio control switch connector from contact coil.

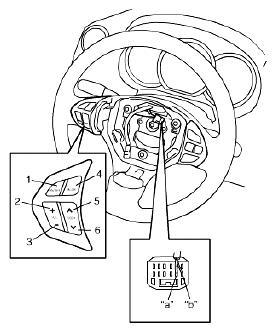

- Check switch for resistance between "a" and "b" terminals under each condition below.
If check result is not satisfactory, replace remote audio control switch.
Remote audio control switch resistance
All switches released (OFF): 5119 - 5223 Ω
"ENTER" switch (1) pushing on (ON): 55 - 57 Ω
"+" switch (2) pushing on (ON): 129 - 133 Ω
"-" switch (3) pushing on (ON): 238 - 244 Ω
"MODE" switch (4) pushing on (ON): 416 - 426 Ω
"^" witch (5) pushing on (ON): 743 - 759 Ω
"V" switch (6) pushing on (ON): 1555 - 1587 Ω
