Radiator Outlet Hose Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

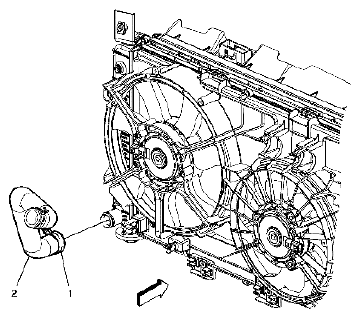

Fig 1: Identifying Radiator Outlet Hose Clamps & Hose

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT COMPONENT NAME TABLE

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM (LY7 GE 47716 FILL) and DRAINING AND FILLING COOLING SYSTEM (LY7 STATIC FILL) . Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
1	Radiator Outlet Hose Clamps
2	Radiator Outlet Hose
